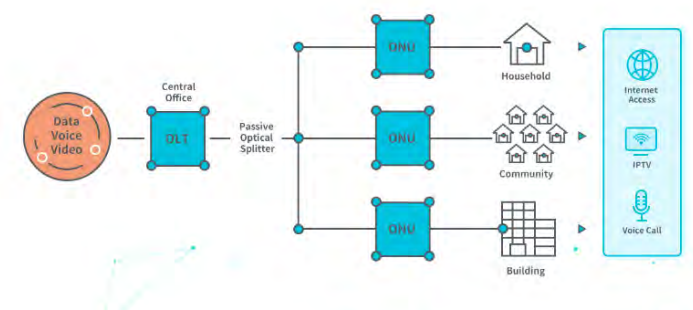

Access to Fiber Optical Network

Support downstream 2.5Gbps and upstream to 1.25Gbps with transmission dis- tance up to 20km. Higher bandwidth support makes it possible to integrate and provide more additional services with the same device.

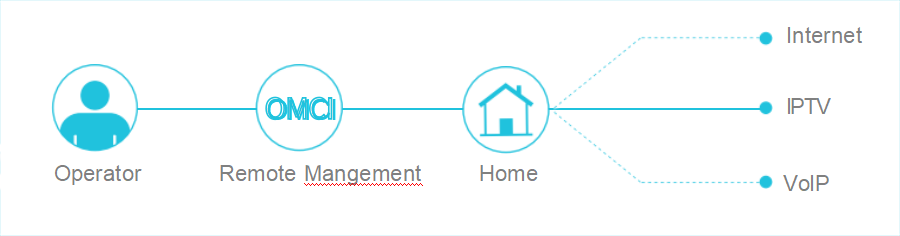

Easy Remote Management

GP624GV2 support the ONT Management and Contol Interface (OMCI), making it easy to confiqure, activate and manage remotely from an Optical Line Terminal(OLT).

300Mbps Wireless N Speed

GP624GV2 is a high speed solution that is compatible with IEEE 802.11b/g/n.Based on 802.11n technology, GP624GV2 gives users wireless performance at up to 300Mbps, which can meet your most demanding home networking needs, such as HD streaming, online gaming and large files downloading.

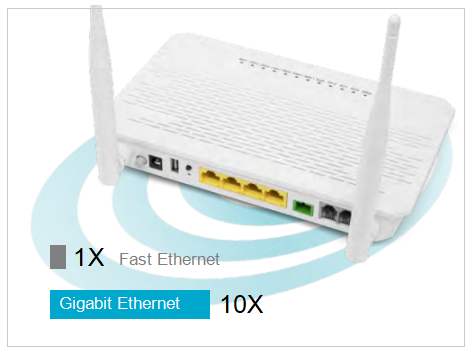

Full Gigabit Wired

With four gigabit LAN ports, speeds can be up to 10 faster than standard Ethernet connections. The GP624GV2 can provide robust and extremely fast connections to all of your favorite wired devices, including game consoles, smart TVs, DVRs, and more.

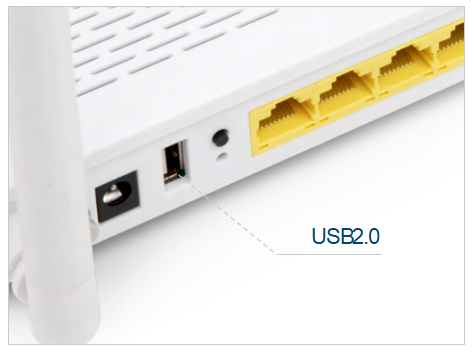

Versatile USB Connectivity

A USB 2.0 port makes the GP624GV2 a truly resourceful gateway. Share a hard drive full of media through your home network, or via an ftp server whenever you’re away.

Manage Your Network with Advanced Features

The GP624GV2 supports various advanced settings includ- ing QoS, IPv6, parental controls, guest network, and many other features. Use these advanced features to build a net- work that is only customized for you.

Specifications

General

• GPON Standards: ITU-T G.984
• Distance: 20Km Max
• Data Rates: Upstream:1.25Gbps, Downstream:2.5Gbps
• Wireless Standards: IEEE802.11b/g/n,2.4GHz
• Signal Rate: 2.4GHz:Up to 300Mbps
• Operation Frequency: 2.4GHz
• Reception Sensitivity:

 2.4GHz

 11g 54M: -77dBm

 11n HT20: -74dBm, 11n HT40: -72dBm

 Wireless Security: WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

Hardware

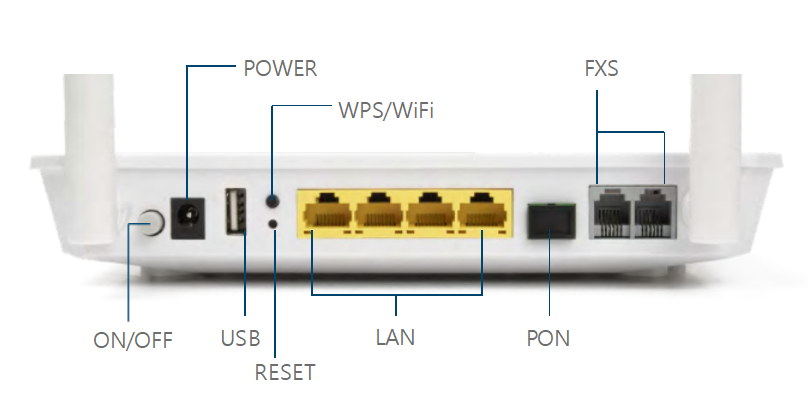

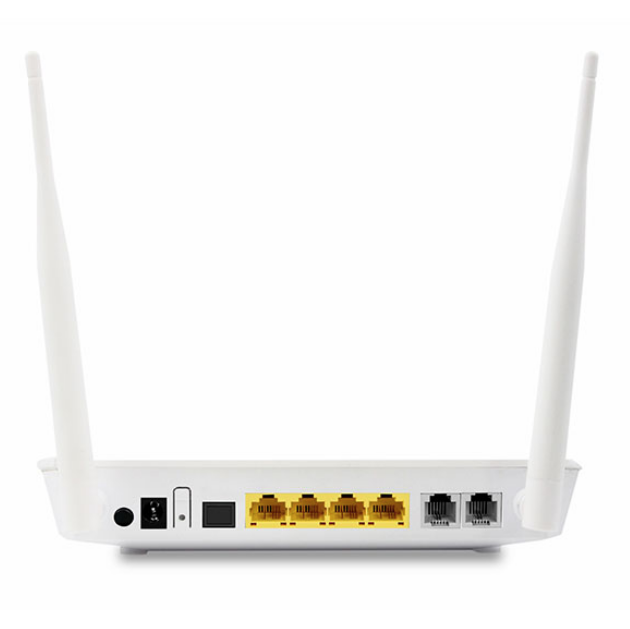

•  Interfaces: 1 x SC/APC GPON Port, 4 x 10/100/1000Mbps LAN Port. 2 x FXS Port,

1 x USB2.0 Port

•  Buttons: Power ON/OFF Button, WPS/WiFi Button，Reset Button
•  Power Supply: DC 12V 1A
•  Antenna: 2 x 2.4GHz 5dBi fixed external antennas
•  Dimensions (W X D X H): 202 x 128x 30mm

Specifications

Software Features

• WAN Type: Dynamic IP/Static IP/PPPoE
• DHCP: Server, Client, DHCP Client List, Address Reservation
• Quality of Service: WMM, Bandwidth Control
• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
• VLAN: 802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode
• Access Control: Parental Control, Local Management Control, Host List, Access
• Schedule, Rule Management
• Firewall Security:

 DoS, SPI Firewall

 IP Address Filter/MAC Address Filter/Domain Filter

 IP and MAC Address Binding

• Management: Access Control, Local Management, Remote Management
• Internet Protocol: IPv4, IPv6

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Relative Humidity: 10%~90%, non-condensing
• Storage Humidity: 5%~95%, non-condensing

Package Contents

• 1 x GPON Router
• 1 x Quick Installation Guide
• 1 x Power Adapter

Certifications

• CE, RoHS
